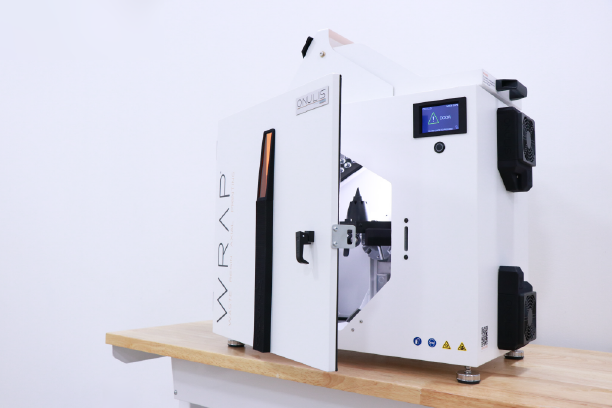

WRAP Prime
Dual Function: P3/DLP UV Curing & Used Resin Printing
The WRAP Prime printer is a dual function post-processing solution. In Cure Mode, the WRAP Prime offers certified and traceable P3/DLP post-curing – at production speeds. In Print Mode, the WRAP Prime automatically converts UV unused and expired resin into fully cured plastic stock for a variety of uses, and is safe for disposal as standard household waste.
SKUÂ 750210-1001
Category
DLP Post-Processing, WRAP

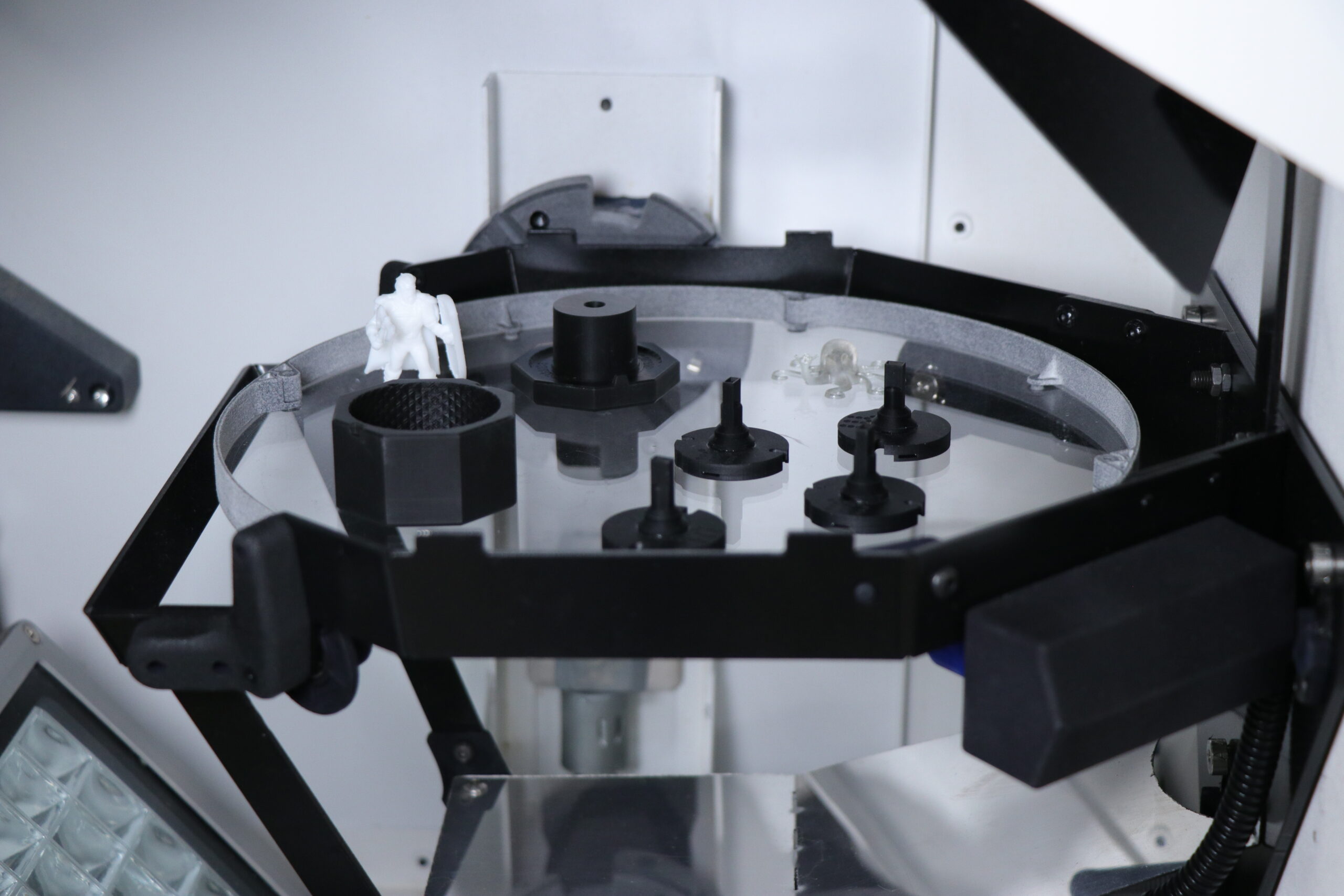

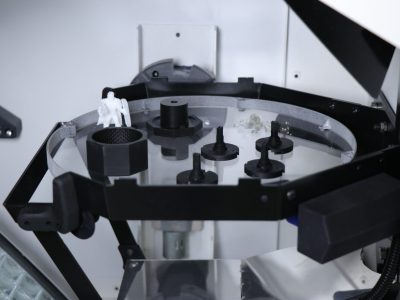

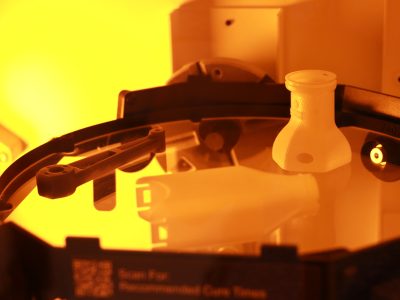

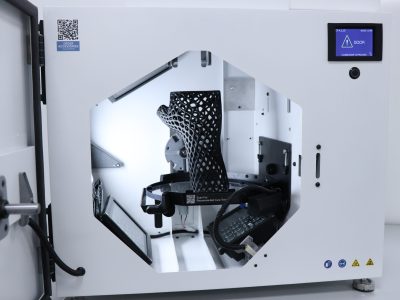

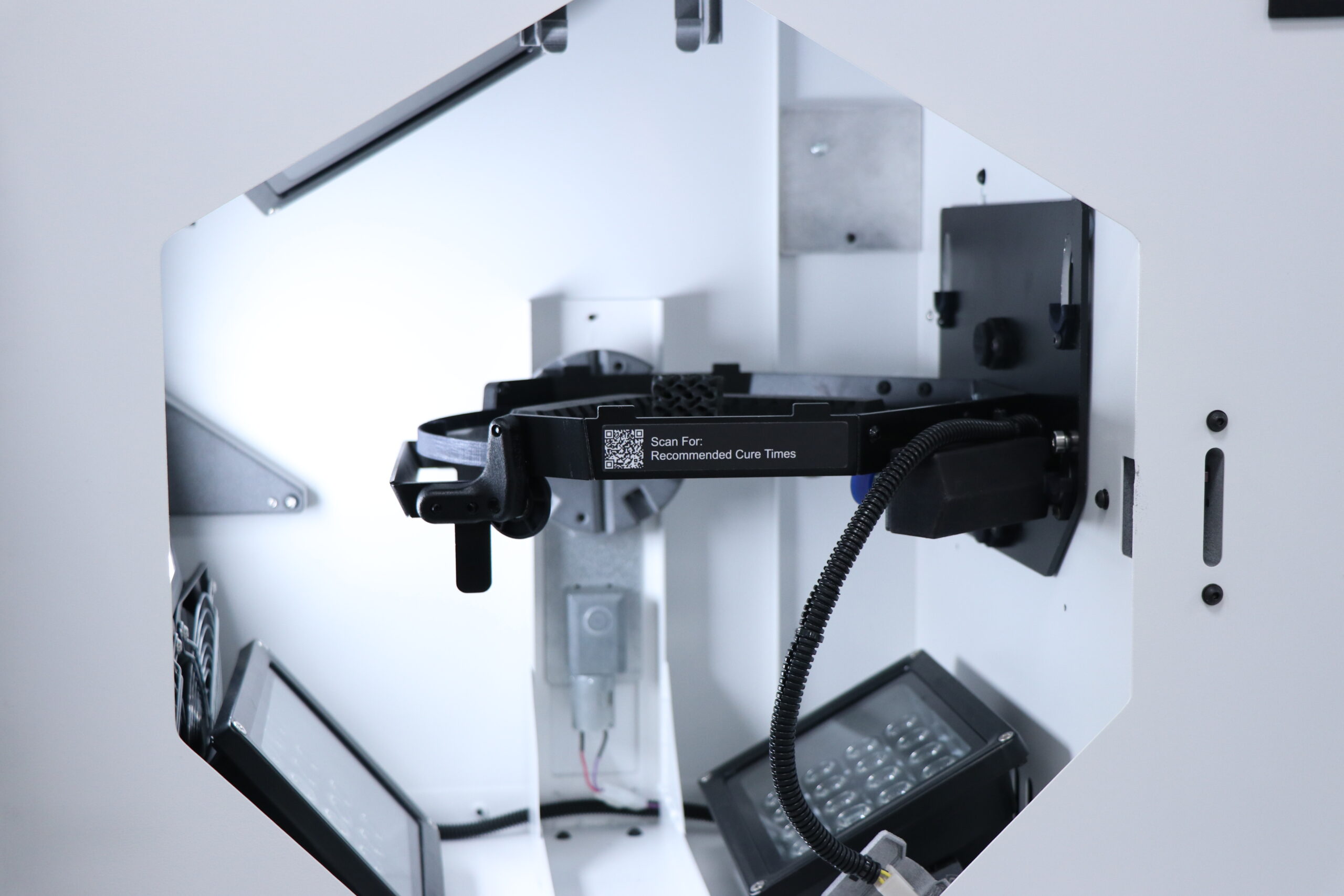

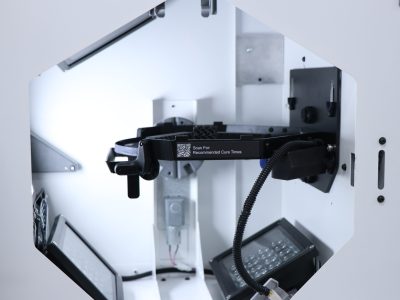

In Cure Mode, the WRAP Prime post-cures P3/DLP parts at production speeds. Using high-powered UV lamps and a transparent rotating curing table, WRAP Prime offers automatic and complete part curing. To ensure that the material manufacturer’s specifications will be met, each WRAP Prime unit goes through a multi-step calibration, inspection, and documentation process. The process is validated by major material manufacturers, with recommended cure times easily available through a QR code on the system’s curing apparatus.

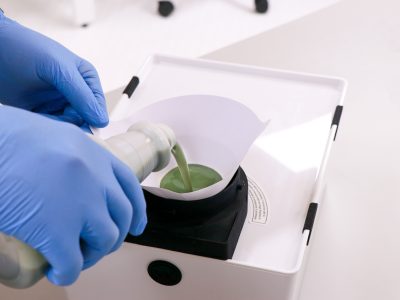

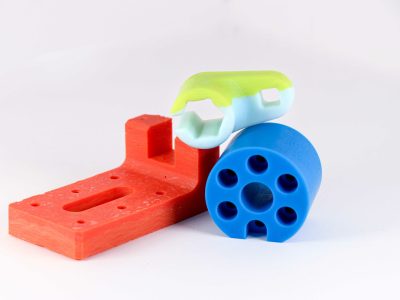

In Print Mode, the WRAP Prime automatically converts UV unused and expired resin into fully cured plastic stock for a wide variety of uses and is safe for disposal as standard household waste. Using Onulis’ patent-pending WRAP technology, the system is the first technology-driven solution for handling UV unused and expired resin, allowing users to avoid time-consuming homespun curing solutions and expensive hazardous waste outsourcing that can draw unwanted oversight from the EPA.
The WRAP Prime Includes:
- 1-Year Parts Warranty & Email Support
- P3/DLP Curing Function:
- Rotary Table (Qty 1)
- Integrated Curing Controller
- Certified, Traceable P3/DLP Curing
- Unused and Expired Resin Printing:
- Low Viscosity Vat (Qty 1)
- Vat Cleaning Tool (Qty 1)
- Vat Viscosity Testing Tool (Qty 1)
- Disposable Tube (Qty 1)
- Disposable Light Shroud (Qty 2)
- Disposable Filler Filter (Qty 2)
- Isopropyl Alcohol Bottle (Qty 1)
| Compatible Resins | PolyJet, SLA, DLP |
| Vat Capacity | 7.5L |
| Throughput | 1 L/hr; Cures 30 day’s worth of waste resin in 6 hrs. |

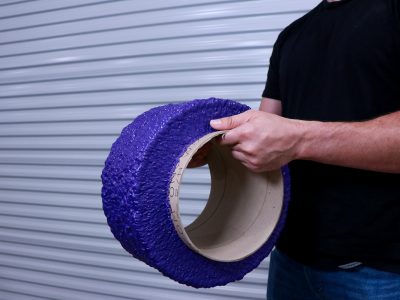

| Hardened Resin | 14″ dia. x 8″ dp. |
| Maximum Part Size | Automatic Rotation: 9.5 x 4 x 9 in. Manual Rotation: 9.5 x 11.5 x 5 in. |
| Cure Time | 5 – 30 minutes; material dependent. All recommended cure times are available on the Onulis website under “Recommended Cure Times.” Process validated by major material manufacturers. |
| Irradiance Values | ± 5 mW/cm² from 78 mW/cm² |
| System Size | Standard: 26.5″ (w) x 16.5″ (d) x 28.7″ (h) Extended: 26.5″ (w) x 16.5″ (d) x 39.2″ (h) |
| System Weight | Weight: 60 lbs |
| System Requirements | Operating Conditions: 65 – 95°F (18 – 35°C) Power Requirements: 110 – 120 VAC, 50 – 60 Hz, 6A, 1 phase |
How It Works
The Onulis workflow is both comprehensive and simple to use. Visit our P3/DLP Workflow Guide to see the recommended post-processing instructions for your specific material.
Step 1
CleanPoint
Part Cleaning
Fully automatic two-tank washing station.
Step 3
CrossLink
Thermal Part Curing
Accurate, pre-programmed thermal curing for Origin materials.
Low-Level

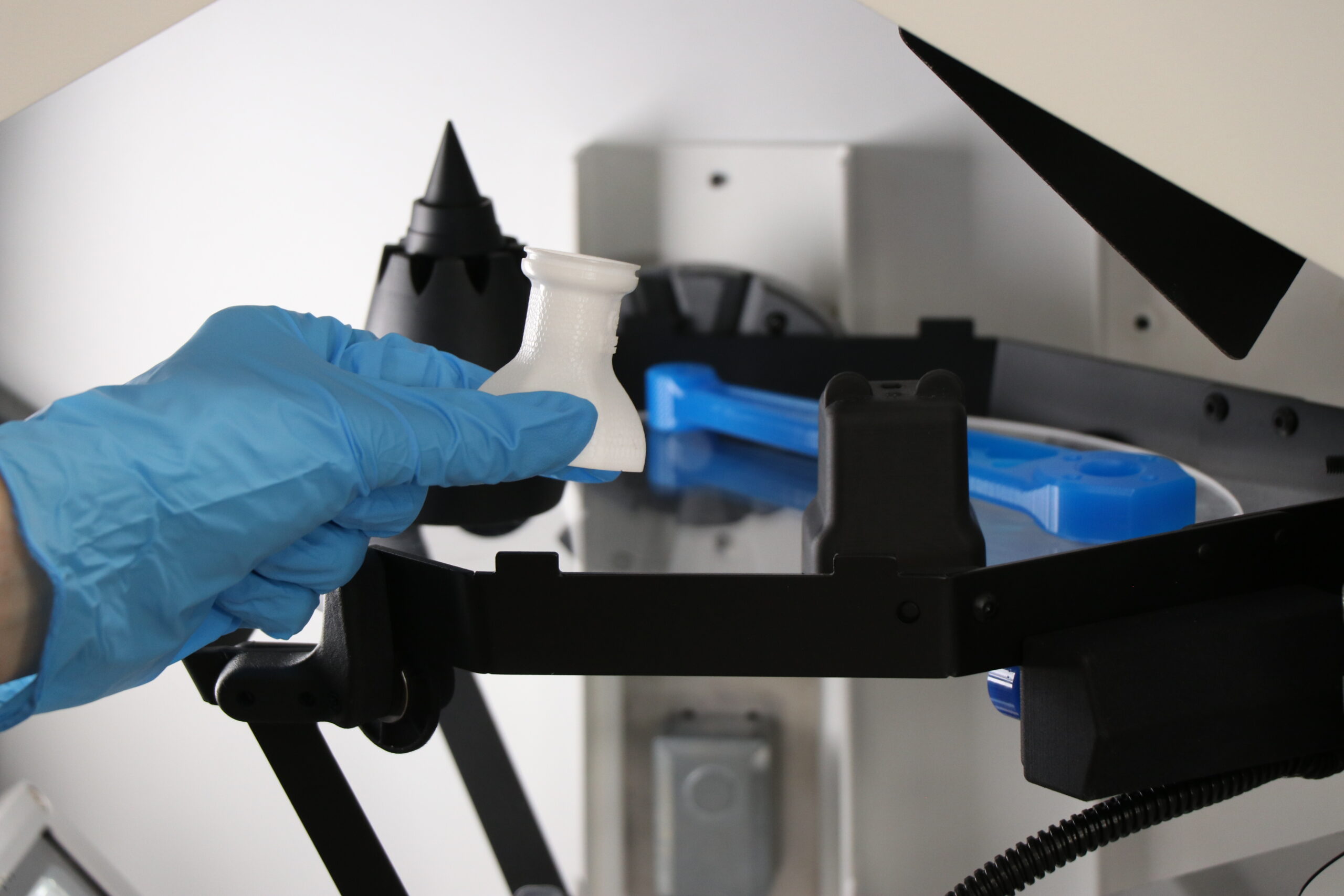

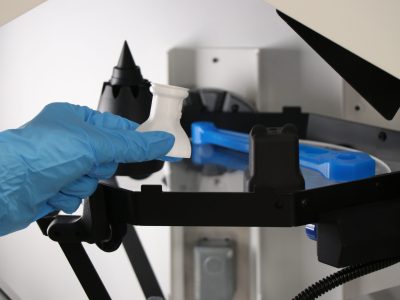

Multi-Level Cure Table
Whether you’re curing small or large parts, WRAP Prime handles both with its multi-level cure table.
If you currently have a single-level curing table, start the process of receving a multi-level cure table today.
Standard-Level
Need Help?
If you’re having trouble with your WRAP Prime printer, submit a support request and one of our experts will get in touch. You can also explore the user guides below.
